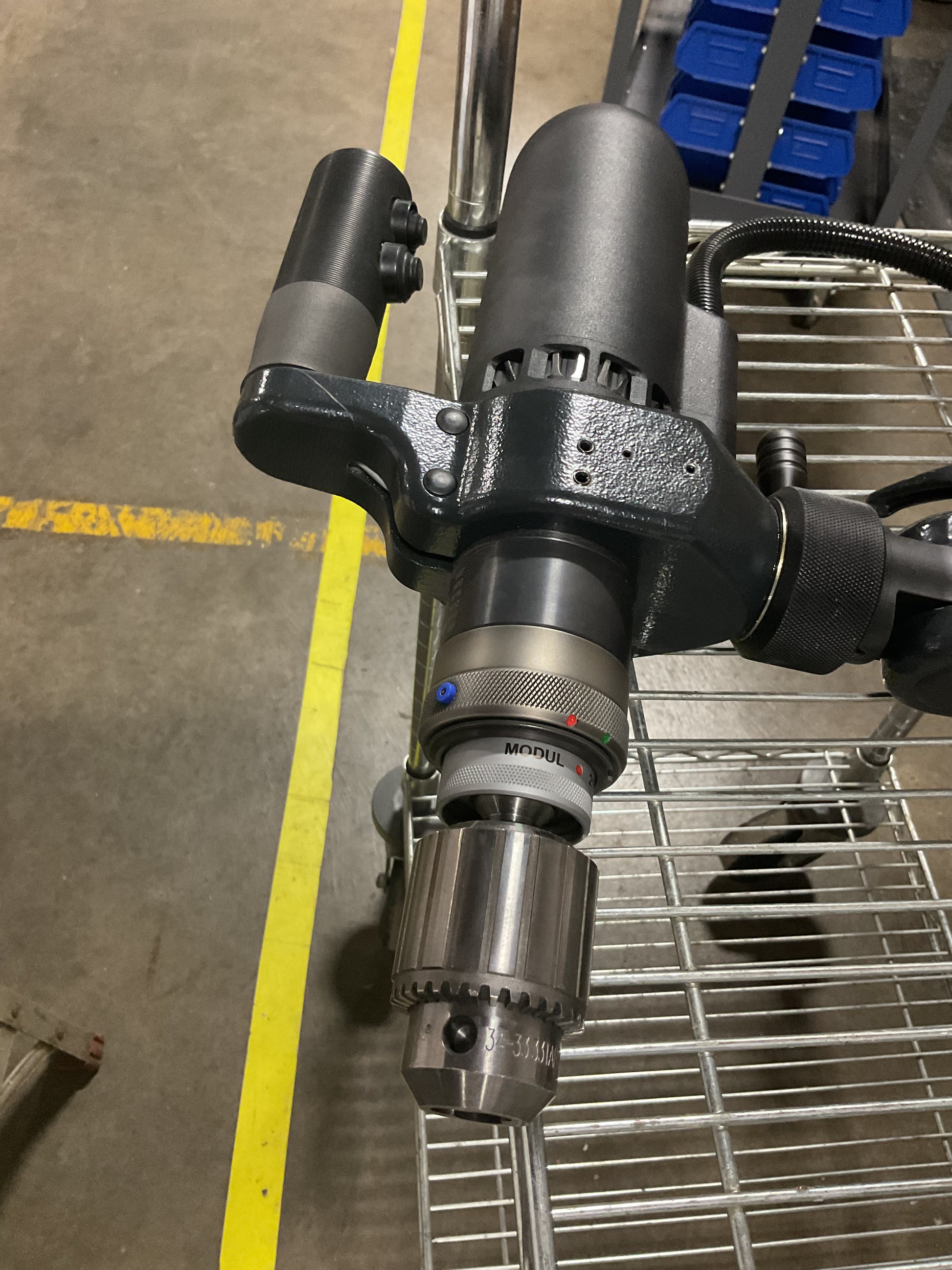

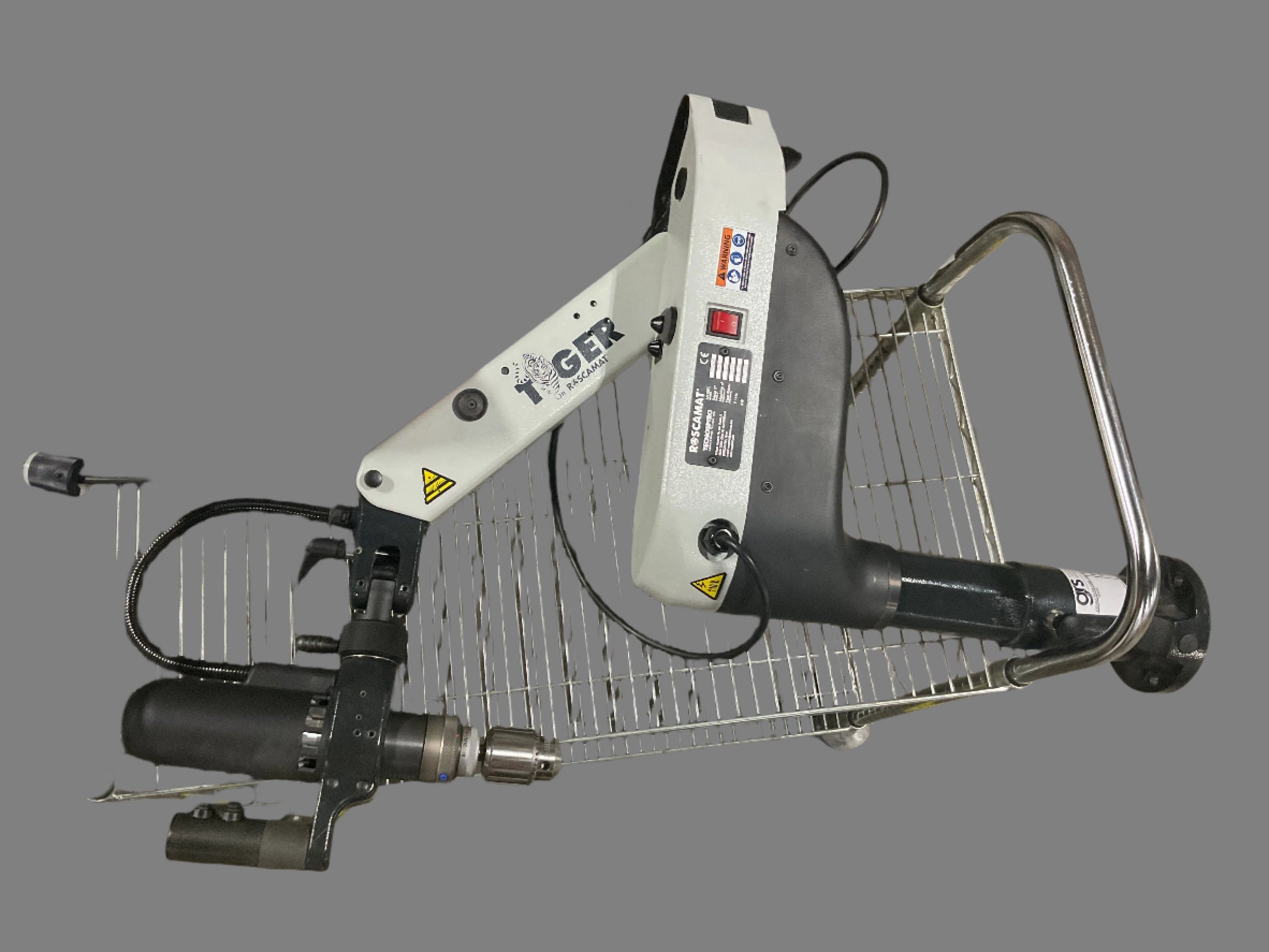

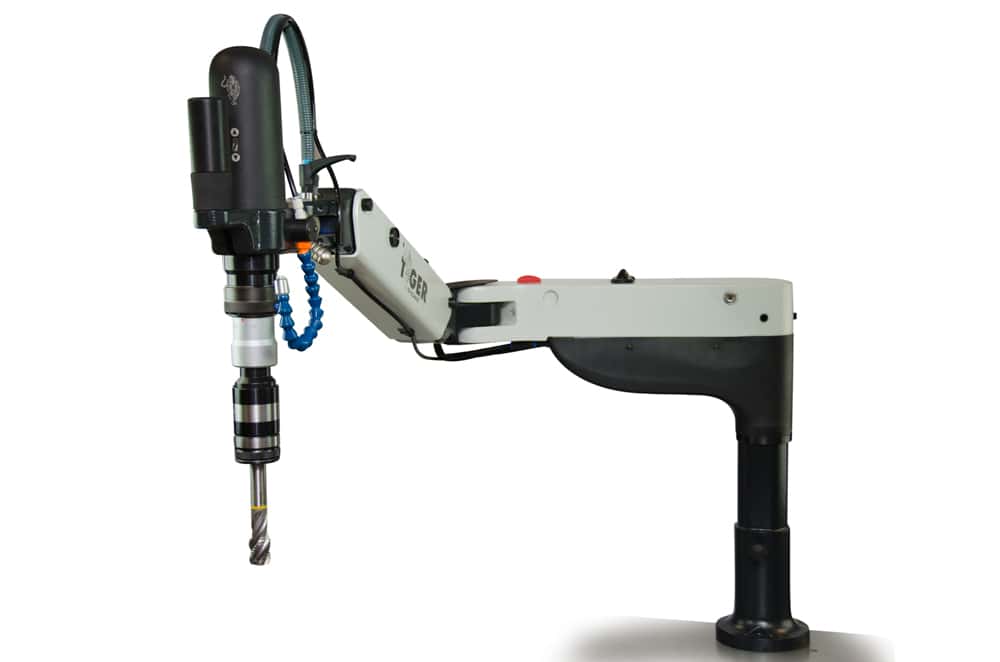

The machine itself consists of a radial arm joint to a tilting arm balanced by means of a pneumatic spring. The head member and the electric motor are located at the end of the tilting arm and is adapted to always move at a right angle with respect to its working area.

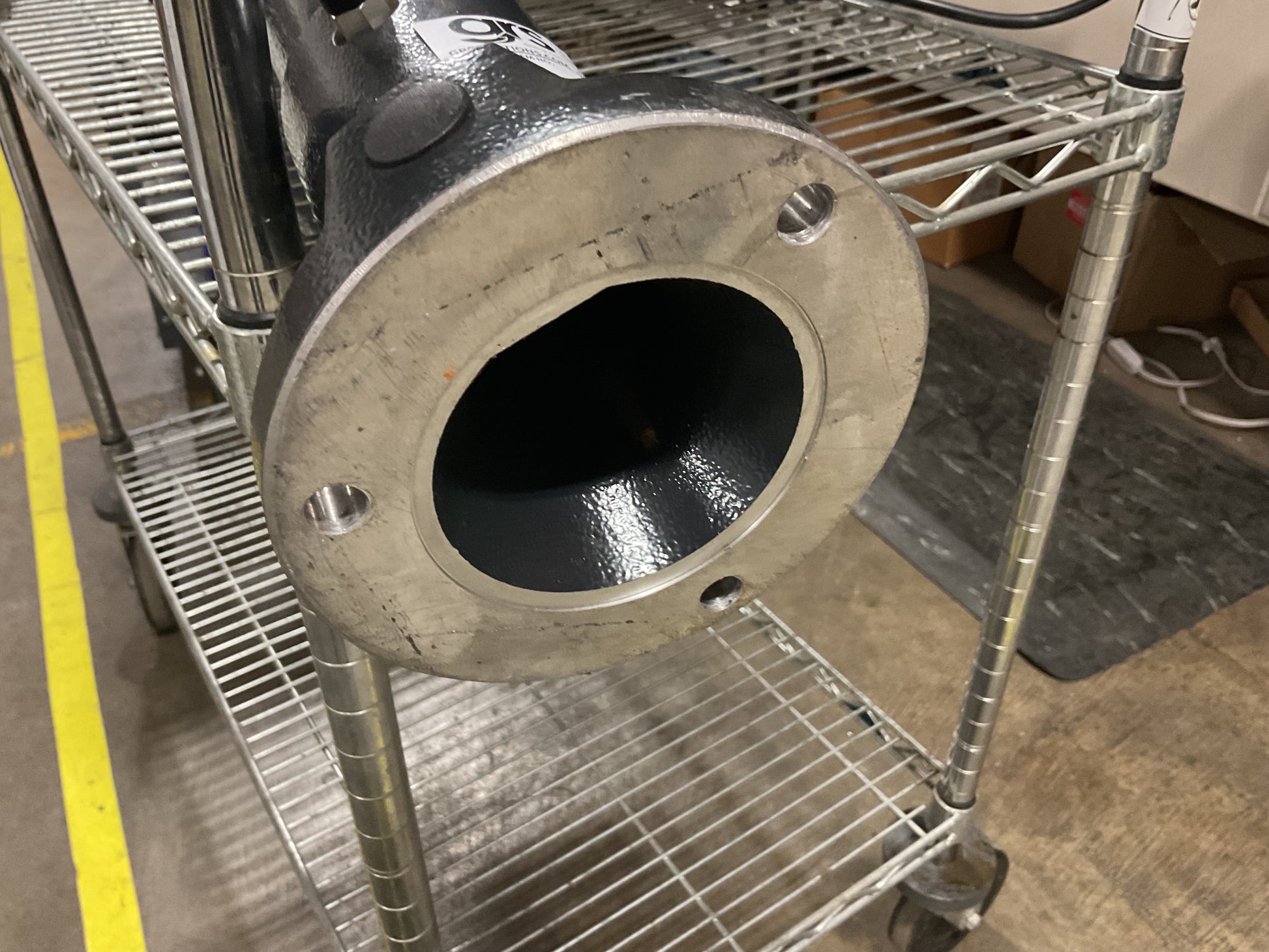

Through the base and by means of three M8 (120º) screws the machine can be fixed to a table or workbench. Such attachment can also be obtained with the use of a simple clamp.

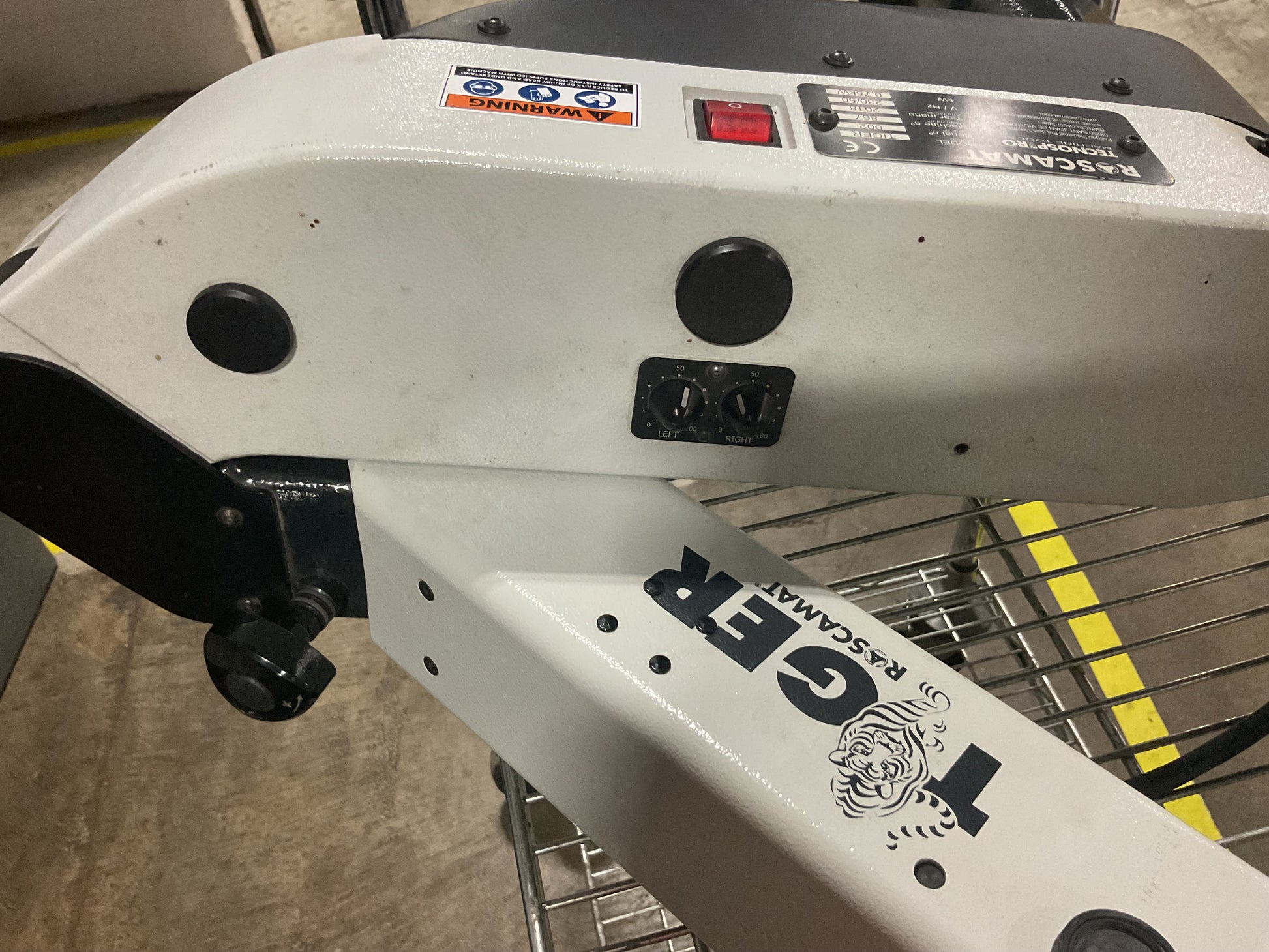

The speed is regulated by means of a variator board located in the “electronic box casing”. The turning motor speed and the optional automatic lubrication and depth control are adjustable by means of two seperate buttons located on top of the “radial arm”. The speed can therefore be adapted to every thread type.
The modular system is attached to the electric motor (220V or 110V), this is a series of seven quick-change gearbox planetary reducers which give different speeds with their correspondent torques. This makes it possible to adapt the speed and torque to each type of thread.
